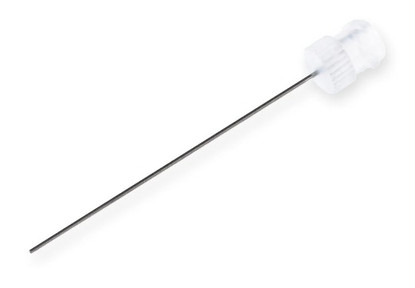

Hamilton (90134) KF722 NDL (22/2"/3), 6-pk
- Part Number:
- 90134
- Product Type:
- Needles
- Pack Size:
- 6-pk
Frequently bought together:
Description
22 gauge, Kel-F Hub Needle, 2 in, point style 3, 6/PK
The Kel-F hub is made from CTFE plastic. Needles are available from 31 to 10 gauge. This hub is recommended when connecting to a rigid male Luer like a Luer Tip (LT) syringe because the plastic is more pliable and creates the best seal. All needles are sold in six-packs and the standard needles are 51 mm long. For all custom needles, the length and point style will need to be specified prior to placing an order.
| Gauge | 22 gauge |
|---|---|
| Point Style | 3: Blunt |
| Needle Length | 2.00 inches (50.8 mm) |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Sales Quantity | 6 needles per pack |
| Hub | Kel-F |
Additional Information
| Needle Length | 2 inch (51 mm) |
|---|---|
| Fluid Path | SST, Borosilicate glass, PTFE |
| Autoclavable | No |
| Gas Sterilizable | Yes |
| Pressure | 500 psig (34.5 bar) |
| Maximum Temperature | 50°C / 122°F |
| Minimum Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.091 inches (2.30 mm) |
| Barrel Outer Diameter | 0.305 inches (7.75 mm) |
| Needle Inner Diameter | 0.0059 inches (0.15 mm) |
| Needle Outer Diameter | 0.0283 inches (0.72 mm) |
| Std Needle Dead Volume | 1.13 µL |
| Sales Quantity | 1 syringe per pack |
