SGE Double Taper Inlet, Liner AG 4mm ID DoubleTap, 5-pk
- Part Number:
- 092018
- Product Type:
- Liner
- Pack Size:
- 5-pk
Frequently bought together:
Description

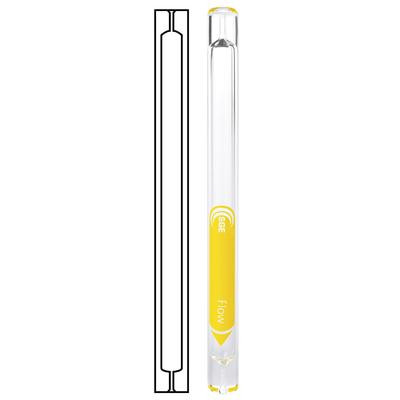

SGE Double Taper Inlet, Liner AG 4mm ID DoubleTap, 5-pk
Features and benefits
- Bottom taper minimizes contact with metal parts of the inlet and focuses sample onto the head of the column.
- Top taper aids in minimizing sample flashback.
- Color coded yellow.
Recommended applications
Double Taper liners are recommended for the following sample or injection modes:
- Trace level analyses.
- Splitless.
- Low boiling point compounds.
- Active compounds.
Product specifications
Double taper available for Agilent, Thermo Scientific, and Varian/Bruker 1177 and 1078/1079 injectors.
| Injector | Length (mm) | OD (mm) | ID (mm) |
| Agilent | 78.5 | 6.3 | 4 |
| Thermo | 105 | 8 | 5 |
| Thermo | 78.5 | 6.3 | 4 |
| Varian/Bruker | 78.5 | 6.3 | 4 |
| Varian/Bruker | 54 | 5 | 3.4 |
